Quick Answer: Can Transparent LED Film Be Cut?
Yes. Ledtoptech transparent LED film supports horizontal and vertical cutting when the position follows the reviewed circuit and signal layout. LED beads must remain intact. Simple adjustments may be handled on site, while PCB-related cuts and complex irregular shapes are better prepared through customization.

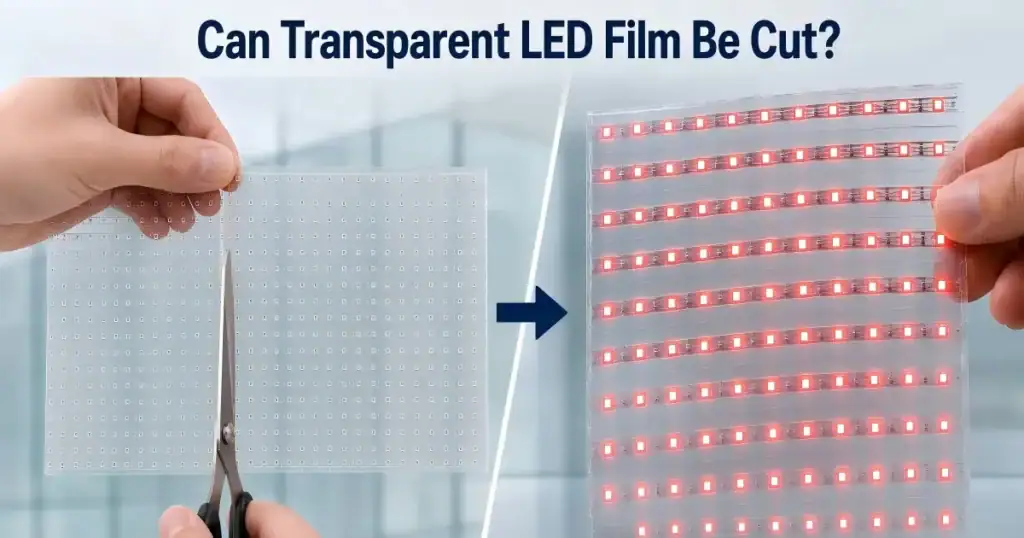

Real Product Proof: Cut and Power On Again
This video shows our P6 transparent LED film being cut along a planned line and powered on normally afterward. It provides direct proof that the film can still operate after cutting when the correct layout is followed and the LED beads remain intact.
Video title: Can Transparent LED Film Be Cut? Real Cutting Test
The cutting position still needs to be reviewed first. The reason becomes clear once you look at what is built into the film.
Why Can’t LED Film Be Cut Like Ordinary Window Film?

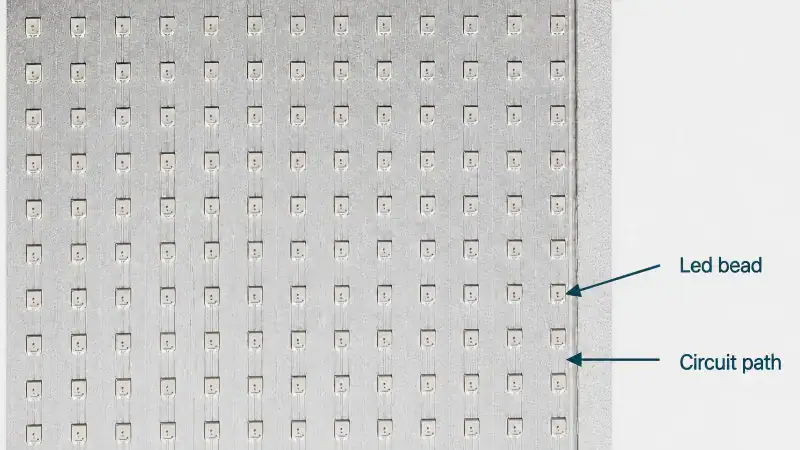

Transparent LED film is an electronic display, not a simple surface covering. It contains LED beads, circuits, and signal paths that must remain functional after cutting. A cut in the wrong position may damage an LED or interrupt the circuit, so the layout must be reviewed before the cutting line is marked.
Ordinary window film can usually be trimmed according to the outer glass shape. LED film requires an additional check because the cutting path must work with the electronic layout inside the product.
Before cutting, confirm:
- The glass dimensions and shape
- The required display area
- The LED film arrangement on the glass
- The horizontal or vertical cutting direction
- A suitable position based on the circuit and signal path
- Whether the planned cut involves the PCB
The LED beads must not be cut. “Cuttable” does not mean that every point on the film is a valid cutting position.
Flexible electronic products are built around defined component and interconnection layouts. The Global Electronics Association’s board design standards provide general background on printed and flexible board design.
Where Can Transparent LED Film Be Cut?
LEDTOPTECH transparent LED film supports horizontal and vertical cutting at a suitable end position of the circuit or signal path. The exact position depends on the product layout and the required glass shape. An engineer should identify the position before the cut is made.
A dimensioned drawing is more useful than a general request to “make the film smaller.” It allows the engineer to compare the glass outline with the film layout and check whether the required adjustment is suitable for on-site cutting.
Use this project workflow:
- Measure the glass.
- Confirm the required display area and shape.
- Prepare a drawing or clear dimensional sketch.
- Ask our engineer to review the LED film layout.
- Mark the approved cutting position.
- Cut and test the film according to the reviewed solution.
The P6 sample shown in our videos has a 6 mm pixel pitch. This describes the distance between pixels; it does not define the cutting interval.
After the position is confirmed, the project team still needs to decide where the cutting work should be completed.
On-Site Cutting or Factory Customization: Which Should You Choose?
Both options are available. A straightforward horizontal or vertical adjustment may be completed on site after engineering review. Factory customization is preferred when the cut involves the PCB or the glass requires a complex irregular layout.
When On-Site Cutting May Be Suitable
On-site cutting may suit a simple adjustment when the installer has a reviewed layout and a clearly marked cutting position. This can help when the confirmed glass dimensions require a controlled change before installation.
The cut should not become an improvised site correction. The installer still needs to follow the approved circuit layout and keep every LED bead intact.
When Factory Customization Is Preferred
Factory customization is preferred when a cut involves the PCB, the glass has a complex irregular shape, or several angled sections must work together. The circuit path, film shape, and installation arrangement can then be reviewed before delivery.
| Project condition | Recommended direction |
|---|---|
| Simple horizontal or vertical adjustment | Engineer-reviewed on-site cutting may be possible |
| Cut involving the PCB | Factory customization preferred |
| Complex irregular layout | Factory customization preferred |
| Triangular or angled glass | Review the drawing before selecting the method |
| No confirmed glass drawing | Complete the layout review before cutting |
For related product options, see our transparent LED display solutions .
This decision becomes more important when the glass includes triangular sections, angled edges, or several non-standard dimensions.

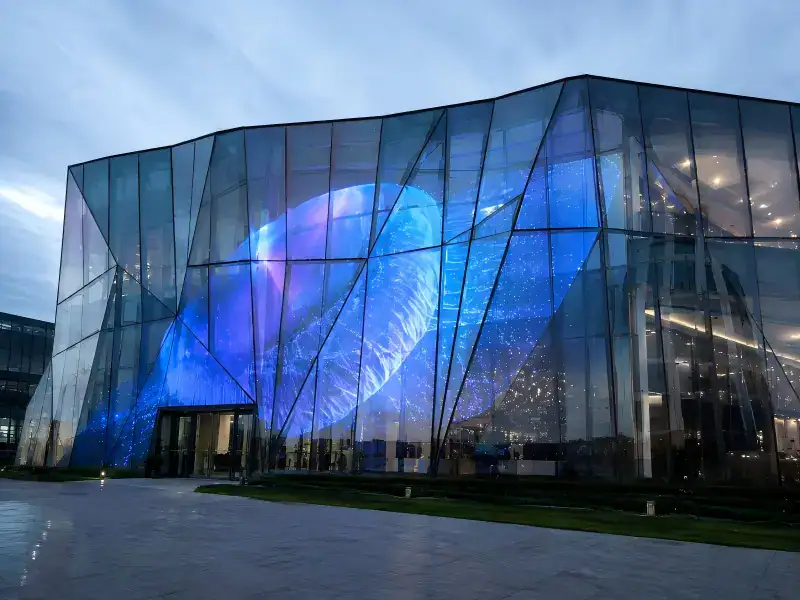

Can Crystal LED Film Screen Fit Triangular or Angled Glass?
Yes. LEDTOPTECH crystal LED film screen can support triangular shapes, angled cuts, and other irregular layouts. The final shape must follow a reviewed circuit layout, and the LED beads cannot be cut. Factory customization is preferred for a complex shape or a cut involving the PCB.
Possible applications include:
- Triangular shop windows
- Glass sections with an angled top or side
- Glass partitions with non-standard dimensions
- Retail display areas where a rectangular film would overlap the frame
- Custom architectural glass layouts
The shape name alone is not enough to confirm the solution. Two triangular windows can require different layouts because their dimensions, film arrangements, and installation positions are different.
To review any of these layouts, the engineer needs more than the name of the shape.
What Information Should You Provide Before Cutting or Customization?
Send the glass dimensions, shape, and drawing before the cutting solution is confirmed. Site photos, the required display area, and the proposed installation position are also useful. These details help the engineer recommend controlled on-site cutting or factory customization.
Provide:
- Overall glass width and height
- A dimensioned drawing of triangular, angled, or other irregular sections
- The area where content should appear
- Photos of the glass and surrounding frame
- The proposed installation position
- Any area that must remain clear
Frequently Asked Questions
Can transparent LED film be cut anywhere?
No. Transparent LED film can only be cut at a suitable position based on the circuit and signal layout. The cutting line must not pass through the LED beads, and the position should be reviewed before cutting.
Will approved cutting affect warranty or stability?
When cutting follows the engineer-reviewed solution, warranty, protection, and stability are not affected. Unapproved cutting outside that layout is not covered by this statement.
Conclusion: Plan the Cut Before Installation
Yes, transparent LED film can be cut to fit non-standard glass. The decision should be based on the circuit layout and the actual glass design—not on the pixel pitch alone.
For a straightforward size adjustment, send the final glass dimensions before installation so the cutting position can be checked. For triangular, angled, or other irregular glass, provide a clear drawing and site photos so the full layout can be reviewed before choosing on-site cutting or factory customization.
Share your glass size, shape, or drawing with our engineer for a suitable cutting or customization recommendation. Technical documents and project assistance are also available through LEDTOPTECH support.
